aiori-HDF5.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <sys/stat.h>
#include <hdf5.h>
#include <mpi.h>
#include "aiori.h"
#include "utilities.h"
#include "iordef.h"

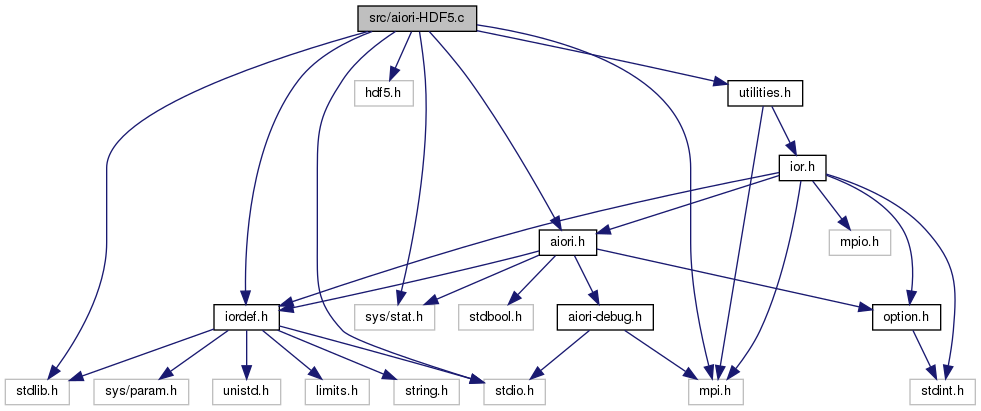

Include dependency graph for aiori-HDF5.c:

Go to the source code of this file.

Data Structures
struct	HDF5_options_t
struct	aiori_h5fd_t

Macros
#define	H5_USE_16_API
#define	NUM_DIMS   1 /* number of dimensions to data set */
#define	HDF5_CHECK(HDF5_RETURN, MSG)

Functions
static IOR_offset_t	SeekOffset (void *, IOR_offset_t, aiori_mod_opt_t *)
static aiori_fd_t *	HDF5_Create (char *, int flags, aiori_mod_opt_t *)
static aiori_fd_t *	HDF5_Open (char *, int flags, aiori_mod_opt_t *)
static IOR_offset_t	HDF5_Xfer (int, aiori_fd_t *, IOR_size_t *, IOR_offset_t, IOR_offset_t, aiori_mod_opt_t *)
static void	HDF5_Close (aiori_fd_t *, aiori_mod_opt_t *)
static void	HDF5_Delete (char *, aiori_mod_opt_t *)
static char *	HDF5_GetVersion ()
static void	HDF5_Fsync (aiori_fd_t *, aiori_mod_opt_t *)
static IOR_offset_t	HDF5_GetFileSize (aiori_mod_opt_t *, char *)
static int	HDF5_StatFS (const char *, ior_aiori_statfs_t *, aiori_mod_opt_t *)
static int	HDF5_MkDir (const char *, mode_t, aiori_mod_opt_t *)
static int	HDF5_RmDir (const char *, aiori_mod_opt_t *)
static int	HDF5_Access (const char *, int, aiori_mod_opt_t *)
static int	HDF5_Stat (const char *, struct stat *, aiori_mod_opt_t *)
static void	HDF5_Finalize (aiori_mod_opt_t *)
static void	HDF5_init_xfer_options (aiori_xfer_hint_t *params)
static int	HDF5_check_params (aiori_mod_opt_t *options)
static option_help *	HDF5_options (aiori_mod_opt_t **init_backend_options, aiori_mod_opt_t *init_values)
static void	SetupDataSet (aiori_h5fd_t *, int flags, aiori_mod_opt_t *)

Variables
ior_aiori_t	hdf5_aiori
static aiori_xfer_hint_t *	hints = NULL

Macro Definition Documentation

H5_USE_16_API

#define H5_USE_16_API

Definition at line 24 of file aiori-HDF5.c.

HDF5_CHECK

#define HDF5_CHECK	(		HDF5_RETURN,
			MSG
	)

Value:

do {                                \
                                                                         \
    if (HDF5_RETURN < 0) {                                               \
        fprintf(stdout, "** error **\n");                                \
        fprintf(stdout, "ERROR in %s (line %d): %s.\n",                  \
                __FILE__, __LINE__, MSG);                                \
        /*                                                               \
         * H5Eget_msg(hid_t mesg_id, H5E_type_t* mesg_type,              \
         *            char* mesg, size_t size)                           \
         */                                                              \
        fprintf(stdout, "** exiting **\n");                              \
        exit(EXIT_FAILURE);                                                        \
    }                                                                    \
} while(0)

Definition at line 68 of file aiori-HDF5.c.

Referenced by HDF5_Access(), HDF5_Close(), HDF5_Delete(), HDF5_Fsync(), HDF5_GetFileSize(), HDF5_MkDir(), HDF5_Open(), HDF5_RmDir(), HDF5_Stat(), HDF5_StatFS(), HDF5_Xfer(), SeekOffset(), and SetupDataSet().

NUM_DIMS

#define NUM_DIMS   1 /* number of dimensions to data set */

Definition at line 32 of file aiori-HDF5.c.

Referenced by HDF5_Open(), SeekOffset(), and SetupDataSet().

Function Documentation

HDF5_Access()

static int HDF5_Access ( const char *  path, int  mode, aiori_mod_opt_t *  param  )

static

Definition at line 791 of file aiori-HDF5.c.

References aiori_xfer_hint_t::dryRun, HDF5_CHECK, and MPIIO_Access().

Here is the call graph for this function:

HDF5_check_params()

static int HDF5_check_params ( aiori_mod_opt_t *  options )

static

Definition at line 198 of file aiori-HDF5.c.

References ERR, HDF5_options_t::individualDataSets, o, and HDF5_options_t::setAlignment.

HDF5_Close()

static void HDF5_Close ( aiori_fd_t *  afd, aiori_mod_opt_t *  param  )

static

Definition at line 492 of file aiori-HDF5.c.

References aiori_h5fd_t::dataSet, aiori_h5fd_t::dataSpace, aiori_xfer_hint_t::dryRun, aiori_h5fd_t::fd, aiori_h5fd_t::fileDataSpace, HDF5_CHECK, aiori_h5fd_t::memDataSpace, and aiori_h5fd_t::xferPropList.

HDF5_Create()

static aiori_fd_t * HDF5_Create ( char *  testFileName, int  flags, aiori_mod_opt_t *  param  )

static

Definition at line 210 of file aiori-HDF5.c.

References HDF5_Open().

Here is the call graph for this function:

HDF5_Delete()

static void HDF5_Delete ( char *  testFileName, aiori_mod_opt_t *  param  )

static

Definition at line 514 of file aiori-HDF5.c.

References aiori_xfer_hint_t::dryRun, HDF5_CHECK, MPIIO_Delete(), and NULL.

Here is the call graph for this function:

HDF5_Finalize()

static void HDF5_Finalize ( aiori_mod_opt_t *  options )

static

Definition at line 859 of file aiori-HDF5.c.

HDF5_Fsync()

static void HDF5_Fsync ( aiori_fd_t *  afd, aiori_mod_opt_t *  param  )

static

Definition at line 483 of file aiori-HDF5.c.

References aiori_h5fd_t::fd, and HDF5_CHECK.

HDF5_GetFileSize()

static IOR_offset_t HDF5_GetFileSize ( aiori_mod_opt_t *  test, char *  testFileName  )

static

Definition at line 668 of file aiori-HDF5.c.

References aiori_xfer_hint_t::dryRun, HDF5_CHECK, MPIIO_GetFileSize(), rank, and WARN.

Here is the call graph for this function:

HDF5_GetVersion()

static char * HDF5_GetVersion ( )

static

Definition at line 548 of file aiori-HDF5.c.

References WARN.

HDF5_init_xfer_options()

static void HDF5_init_xfer_options ( aiori_xfer_hint_t *  params )

static

HDF5 utilizes the MPIIO backend too, so init hints there

Definition at line 192 of file aiori-HDF5.c.

References MPIIO_xfer_hints().

Here is the call graph for this function:

HDF5_MkDir()

static int HDF5_MkDir ( const char *  oid, mode_t  mode, aiori_mod_opt_t *  param  )

static

Definition at line 733 of file aiori-HDF5.c.

References aiori_posix_mkdir(), HDF5_CHECK, rank, and WARN.

Here is the call graph for this function:

HDF5_Open()

static aiori_fd_t * HDF5_Open ( char *  testFileName, int  flags, aiori_mod_opt_t *  param  )

static

Definition at line 218 of file aiori-HDF5.c.

References aiori_xfer_hint_t::blockSize, aiori_xfer_hint_t::collective, HDF5_options_t::collective_md, aiori_h5fd_t::dataSpace, aiori_xfer_hint_t::dryRun, aiori_h5fd_t::fd, aiori_xfer_hint_t::filePerProc, HDF5_CHECK, mpiio_options_t::hintsFileName, HDF5_options_t::individualDataSets, IOR_APPEND, IOR_CREAT, IOR_DIRECT, IOR_EXCL, IOR_RDONLY, IOR_RDWR, IOR_TRUNC, IOR_WRONLY, aiori_h5fd_t::memDataSpace, MPI_CHECK, HDF5_options_t::mpio, aiori_h5fd_t::newlyOpenedFile, NULL, NUM_DIMS, aiori_xfer_hint_t::numTasks, o, rank, safeMalloc(), HDF5_options_t::setAlignment, SetHints(), mpiio_options_t::showHints, ShowHints(), testComm, aiori_xfer_hint_t::transferSize, TRUE, and aiori_h5fd_t::xferPropList.

Referenced by HDF5_Create().

Here is the call graph for this function:

Here is the caller graph for this function:

HDF5_options()

static option_help* HDF5_options ( aiori_mod_opt_t **  init_backend_options, aiori_mod_opt_t *  init_values  )

static

Definition at line 117 of file aiori-HDF5.c.

References HDF5_options_t::chunk_size, HDF5_options_t::collective_md, mpiio_options_t::hintsFileName, HDF5_options_t::individualDataSets, LAST_OPTION, HDF5_options_t::mpio, HDF5_options_t::noFill, NULL, o, OPTION_FLAG, OPTION_OPTIONAL_ARGUMENT, HDF5_options_t::setAlignment, and mpiio_options_t::showHints.

HDF5_RmDir()

static int HDF5_RmDir ( const char *  oid, aiori_mod_opt_t *  param  )

static

Definition at line 762 of file aiori-HDF5.c.

References aiori_posix_rmdir(), HDF5_CHECK, rank, and WARN.

Here is the call graph for this function:

HDF5_Stat()

static int HDF5_Stat ( const char *  oid, struct stat *  buf, aiori_mod_opt_t *  param  )

static

Definition at line 825 of file aiori-HDF5.c.

References aiori_posix_stat(), HDF5_CHECK, rank, and WARN.

Here is the call graph for this function:

HDF5_StatFS()

static int HDF5_StatFS ( const char *  oid, ior_aiori_statfs_t *  stat_buf, aiori_mod_opt_t *  param  )

static

Definition at line 703 of file aiori-HDF5.c.

References aiori_posix_statfs(), HDF5_CHECK, rank, and WARN.

Here is the call graph for this function:

HDF5_Xfer()

static IOR_offset_t HDF5_Xfer ( int  access, aiori_fd_t *  afd, IOR_size_t *  buffer, IOR_offset_t  length, IOR_offset_t  offset, aiori_mod_opt_t *  param  )

static

Definition at line 404 of file aiori-HDF5.c.

References aiori_xfer_hint_t::blockSize, aiori_h5fd_t::dataSet, aiori_xfer_hint_t::dryRun, FALSE, aiori_h5fd_t::fileDataSpace, aiori_xfer_hint_t::filePerProc, aiori_h5fd_t::firstReadCheck, HDF5_CHECK, IOR_CREAT, IOR_RDWR, aiori_h5fd_t::memDataSpace, aiori_h5fd_t::newlyOpenedFile, aiori_xfer_hint_t::numTasks, rank, rankOffset, READCHECK, SeekOffset(), SetupDataSet(), aiori_h5fd_t::startNewDataSet, TRUE, WRITE, and aiori_h5fd_t::xferPropList.

Here is the call graph for this function:

SeekOffset()

static IOR_offset_t SeekOffset ( void *  afd, IOR_offset_t  offset, aiori_mod_opt_t *  param  )

static

Definition at line 570 of file aiori-HDF5.c.

References aiori_xfer_hint_t::blockSize, aiori_h5fd_t::fileDataSpace, aiori_xfer_hint_t::filePerProc, HDF5_CHECK, HDF5_options_t::individualDataSets, NUM_DIMS, aiori_xfer_hint_t::numTasks, o, aiori_xfer_hint_t::transferSize, and TRUE.

Referenced by HDF5_Xfer().

Here is the caller graph for this function:

SetupDataSet()

static void SetupDataSet ( aiori_h5fd_t *  fd, int  flags, aiori_mod_opt_t *  param  )

static

Definition at line 606 of file aiori-HDF5.c.

References HDF5_options_t::chunk_size, aiori_h5fd_t::dataSet, aiori_h5fd_t::dataSpace, aiori_h5fd_t::fd, aiori_h5fd_t::fileDataSpace, HDF5_CHECK, HDF5_options_t::individualDataSets, IOR_CREAT, MAX_STR, aiori_h5fd_t::newlyOpenedFile, HDF5_options_t::noFill, NUM_DIMS, aiori_xfer_hint_t::numTasks, o, rank, rankOffset, TRUE, verbose, and VERBOSE_1.

Referenced by HDF5_Xfer().

Here is the caller graph for this function:

Variable Documentation

hdf5_aiori

ior_aiori_t hdf5_aiori

Initial value:

= {
        .name = "HDF5",
        .name_legacy = NULL,
        .create = HDF5_Create,
        .open = HDF5_Open,
        .xfer = HDF5_Xfer,
        .close = HDF5_Close,
        .delete = HDF5_Delete,
        .get_version = HDF5_GetVersion,
        .xfer_hints = HDF5_init_xfer_options,
        .fsync = HDF5_Fsync,
        .get_file_size = HDF5_GetFileSize,
        .statfs = HDF5_StatFS,
        .mkdir = HDF5_MkDir,
        .rmdir = HDF5_RmDir,
        .access = HDF5_Access,
        .stat = HDF5_Stat,
        .finalize = HDF5_Finalize,
        .get_options = HDF5_options,
        .check_params = HDF5_check_params
}

Definition at line 153 of file aiori-HDF5.c.

hints

aiori_xfer_hint_t* hints = NULL

static

Definition at line 190 of file aiori-HDF5.c.
